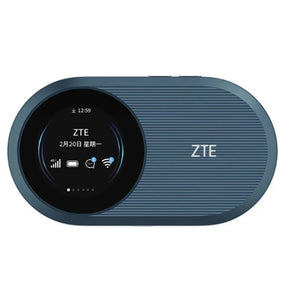

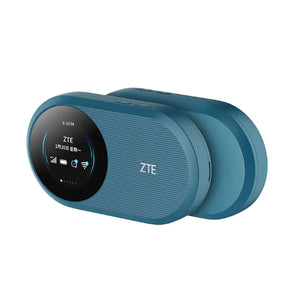

ZTE U10S Pro - 4G Mobile WiFi6 Hotspot
Key Features
- Supports up to 32 devices
- Removable 3000mAh battery
- WiFi peak download speeds up to 229Mbps
Overview
ZTE U10S Pro is a new 4G mobile WiFi hotspot router supporting WiFi 6 and peak download speeds up to 229Mbps. Up to 32 wireless devices can connect with ZTE U10S pro and access the internet.
ZTE U10S Pro is equipped with a circular screen that can query and view device operating status, speed, traffic status, connected users, management content and other information with one click. Its battery capacity is 3000mAh and has a detachable design, with a usage time of up to 10 hours in typical scenarios.
| Wireless chipset supplier | ZTE | | |
| | Routing and WiFi chipset supplier | TROLINK | | |
| | NFC | NO | | |
| Wireless chipset model | ZX297520V3E | | |
| Wireless processor info | Cortex-A53, cortex-A53 up to 624MHz | | |
| Routing and WiFi chipset model | AIC8800DW | | |
| Routing and WiFi processor info | ARM Cortex M4 | | |
| USIM/SIM slot | Standard 6PIN SIM card interface
3V SIM card and 1.8V SIM card | | |
| Memory(SDRAM/NAND) | Modem: 1Gbits Nand+512Mbits LPDDR2 | | |
| BAND | FDD-LTE B1,2,3,5,7,8,20,28
TDD-LTE B38,40,41
UMTS B1,2,5,8 | | |
| Max. transmitter power for WiFi | 2.4GHz：11b 19dBm
11g 17dBm
11n 16dBm
11ax 13dBm
| | |
| Working Time | 10h (ZTE Laboratory Test Value) | | |
| Standy Time | 320h | | |
| WiFi | 802.11b/g/n/ax | Yes | |
2.4G
MIMO:2.4GHz 1*1 | Yes | |
WiFi Speed：
2.4GHz：DL287Mbps，UL229Mbps | Yes | |
Bandwidth:
2.4G: 20M/40M | Yes | |
| Access number: up to 32 | Yes | |
| Modulation：BPSK、QPSK、16-QAM、64-QAM、256-QAM、1024-QAM | Yes | |
| Antenna | 4G/3G Gain：
824-960MHz: 1-2.5dBi
1700-2700MHz: 1-5.5dBi | Yes | |
| WiFi Gain: 2.4GHz-2.5GHz :5-7dbi | Yes | |
| Internal antenna for both all bands and WiFi | Yes | |
| Hardware | Arkwork | Dimensions：108 x 59.8 x 18.9mm | Yes | |
| Weight：119g | Yes | device：64.4g
battery：54.3g |
| Battery：3000mAh, removable | Yes | |
| Maximum power consumption | 4W | Yes | |
| Interface | Usb：1 TypeC usb | Yes | |
SIM slot:
Nano/eSIM Compatibility | Yes | |
| Power button | Yes | |
| Reset button | Yes | |
| WPS button | Yes | |
Screen：
Type: TFT
Size: 1.38 inch
Resolution: 240*240 | Yes | |
| Environment specifications | Operating temperature | -20 to 55° C | Yes | |
| Storage temperature | -40 to 70° C | Yes | |
| Humidity | 5% to 95% | Yes | |
| Certification | | CE，WEEE，ROHS，REACH，WiFi
，TR398、ACA | Yes | |
| Package contents | | | | |
| Quick Start Guide | Yes | |
| User Manuel | Optional | |
| Warranty card | Optional | |
| DoC | Yes | |
| EAN can be customized | Yes | |
| TAC can be customized | Yes | |
| Software | Device Mode | | | |
| Wireless mode | Yes | |
| Networking | IPv4/IPv6 dual stack (NDP IPv6) | Yes | |
| DHCP server | Yes | |
| Virtual Private Network (VPN) : | Yes | |
| pass-through(L2TP/PPTP/IPSec/GEE) | Yes | |
| NAT/NAPT | Yes | |
| Sip ALG | Yes | |
| Multiple APNs | Optional | |
| Firewall | Port Forwarding | Yes | |
| Port Filtering | Yes | |
| Port Mapping | Yes | |
| Domain Filtering | Yes | |
| Upnp | Yes | |
| DMZ | Yes | |
| Remote Access/Ping switch | Yes | |
| MAC address filtering | Yes | |
| WiFi | WiFi Switch | Yes | |
| Security mode: WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-PSK,WPA2-PSK、OPEN、WPA3-PSK | Yes | |
| WiFi Broadcast | Yes | |
| WiFi Isolation | Yes | |
| Auto channel selection | Yes | |
| WPS | Yes | |
| GuestSSID support | Yes | |
| WiFi Sleep Mode | Yes | |
| Device Managemnt | Connected device Management | Yes | |
| SMS | Yes | |
| PIN/PUK management | Yes | |
| APN management | Yes | |
| Upgrade: FOTA | Yes | |
| Language: Chinese/English | Yes | |
| Special Feature | Green Mode: user can set the device to save the power | Yes | |
